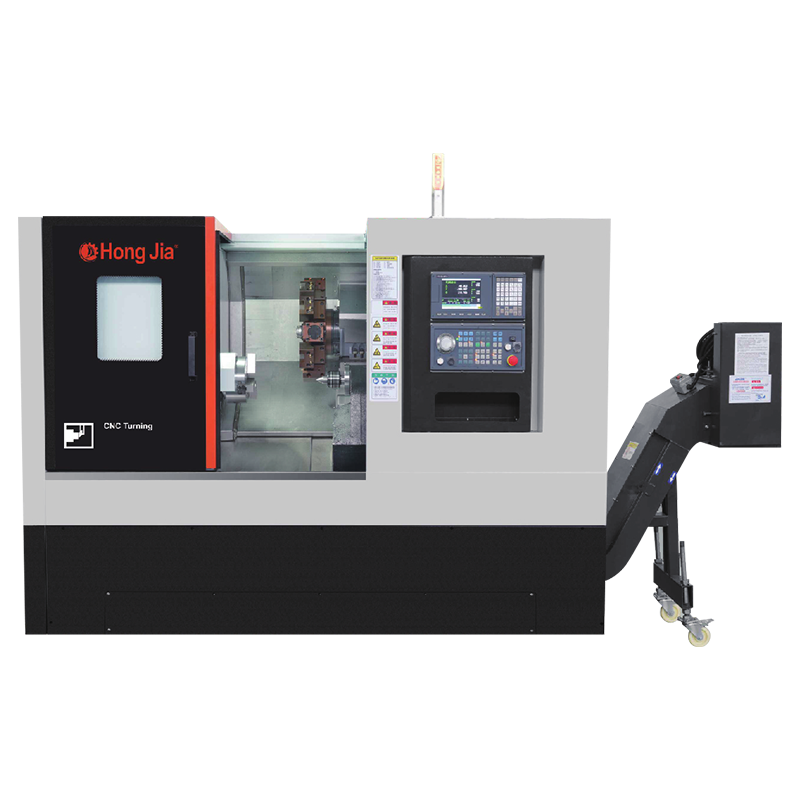

NC-108D Servo Driven Horizontal Turning Center

The servo-driven horizontal turning center uses the latest generation of drive motor technology, providing higher energy density and conversion efficiency, so that the machine tool can still maintain stable performance and precision when running at high speed. The new generation of drive motors achieves lower operating noise through optimized design and advanced manufacturing processes, creating a more comfortable working environment for operators. The motor uses high-quality materials and advanced lubrication systems to effectively extend the service life and reduce maintenance costs.
The spindle motor has excellent high torque output capability and can maintain stable speed and processing accuracy even under heavy cutting conditions. The close cooperation between the servo control system and the spindle motor enables the machine tool to respond quickly to processing instructions and improve processing efficiency and surface quality.

+ Contact Us
  • NC-108D Servo Driven Horizontal Turning Center
  • NC-108D Servo Driven Horizontal Turning Center

Production Information

Processing Capacity

1. Lathe, drilling,g, and boring can be carried out

2. High rigidity basic structure, to achieve heavy cutting

3. Excellent cutting ability and stable processing accuracy to achieve high production

4. The draw-out coolant tank is used for easy cleaning and cutting

5. Standard tank capacity: 125L

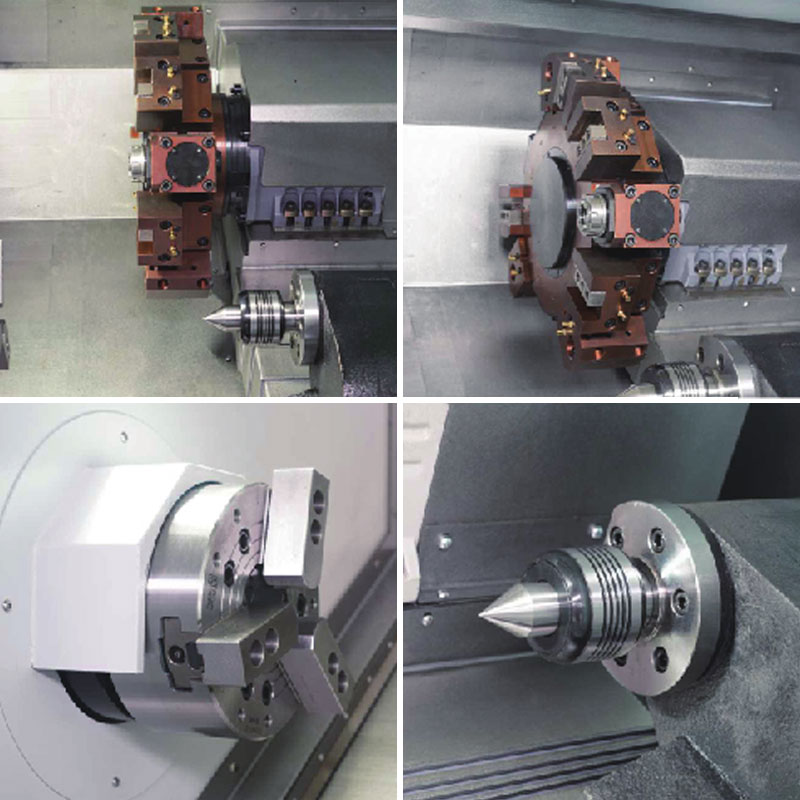

Machine tool basic configuration

1. New generation SYTEC/22TA

2. New generation drive motor

3. The new generation of high torque servo spindle motor is standard

4. Taiwan or Japan wire rail and screw

5. Separate water tank

6. Chip removal machine

7. Oil pressure three claws

8. Standard with built-in high-speed unit precision mechanical spindle

Technical Parameter

Item Unit NC-108D
Max. Turning the diameter of the bed mm Φ560
Max. machining diameter (disc type) mm 12-station turret Φ280
8-station turret Φ330
Max. machining diameter (shaft type) mm Φ280
Max. turning diameter on a skateboard mm Φ280
Distance between two centers mm 500
Max. working length mm 500
Max. Tie rod through hole diameter mm Φ52
Principal axis Spindle nose form A2-6
Spindle through hole diameter mm Φ66
The taper of the spindle inner hole MT-6
Three-jaw chuck holding capability 8"
Pull rod action form Hydraulic pressure
Max. spindle speed r/min 4000
Main motor power kW  11/15
Feed X-axis travel mm 225
Z-axis travel mm 490
X/Z axis fast-moving speed m/min 25
Precision Positioning accuracy (X/Z) mm 0.008/0.010
Repeated positioning accuracy (X/Z) mm 0.006/0.008
Power tool tower Tool number 12
Driving form Servo
Height of center mm 80
Tool change time (T-T) s 0.2
Boring tool holder specifications mm 32
Square tool holder specifications mm 25
Powerhead speed r.p/min 4000
Power head motor power KW 3.6
Powerhead torque N.m 15
Powerhead type BMT 55
Tailstock Taper of tailstock sleeve MT-5
Max/Min.holding workpiece length mm 500/60
Safety shield Completely closed
Numerical control system SYTEC 22TA/FANUC 0i-TF/GSK988TA
Machine weight Kg ≈4200
Overall dimensions of the machine (L×W×H) mm 2500×1700×1790
