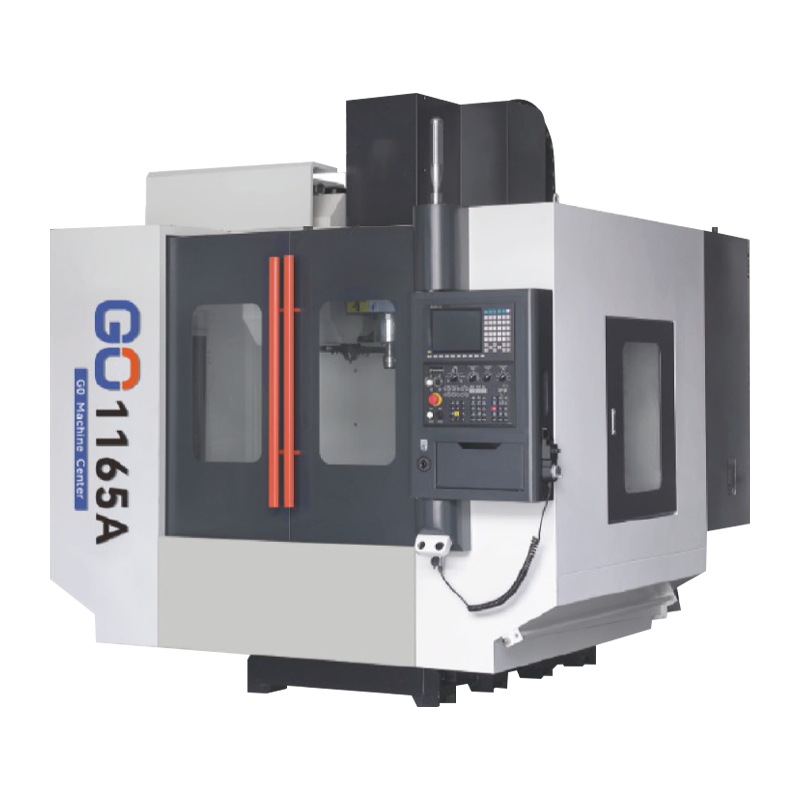

1165A high speed and high precision heavy duty machining center

The bed guideway adopts a large span size design with a wide and steady base, spindle column box structure, widened and enlarged saddle, and heavy load full support design, which provides a guarantee for high speed and high precision.
The three feed axes all adopt Taiwan imported precision linear guide to ensure the positioning accuracy of each axis.
Machine tool three-axis wire rods are given to the pre-tensioned to enhance the transmission accuracy and rigidity of the machine tool. The system has developed the function of one-key reset and one-key tool change for the tool magazine.
Machine tool belt or direct connection spindle optional high-pressure center water to enhance processing efficiency.

+ Contact Us
  • 1165A high speed and high precision heavy duty machining center

Production Information

Technical Parameter

Item Unit 1165A
Travel X-axis(left and right machining range) mm 1100
Y-axis(front and back machining range) mm 650
Z-axis(upper and lower processing range) mm 650
Distance from spindle nose to work surface mm 100~750
Work Table Table size mm 1200×650
T-shaped Cao dimensions mm 18×5×100
Maximum table load kg 1000
Spindle Spindle taper hole BT40
Spindle speed rpm 8000-12000
Spindle drive mode Straight link/bcK
Feed GO speed m/min 36/36/36
G01 Maximum speed mm/min 10000
G01 Minimum speed mm/min 0.001
Tool Library  Tool library type BT40 disc type
Tool storage capacity 把 24T
Allowable weight kg 3
Maximum diameter mm None adjacent Φ140
Adjacent tool change time s 1.2
Machine  Diameter Footprint size mm 3200×3000×2800
Machine weight T ≈6.5
Accuracy Positioning accuracy XYZ(full stroke) mm 0.008
Repeated positioning accuracy XYZ(full stroke) mm ±0.005

Other

Item Unit T600A
Air pressure requirement kg/cm2 6-8 (Dual filtration system)
Electrical component Schneider
Voltage requirement 380V±5%50Hz
Temperature requirement °C 5-40
Ground connection Must be reliably grounded
System configuration New generation 22MA set

Optional

Item
1. System □Mitsubishi M80 □ FANUC MF Plus □New Generation
2. Heieghtened probe column □Raise to 200mm □Raise to 300mm
3. Axis rotate □ 170mm □ 210mm □ 250mm
4. Effuet core □ 30bar □ 50bar □ 70bar
5. Spindle coolant system
