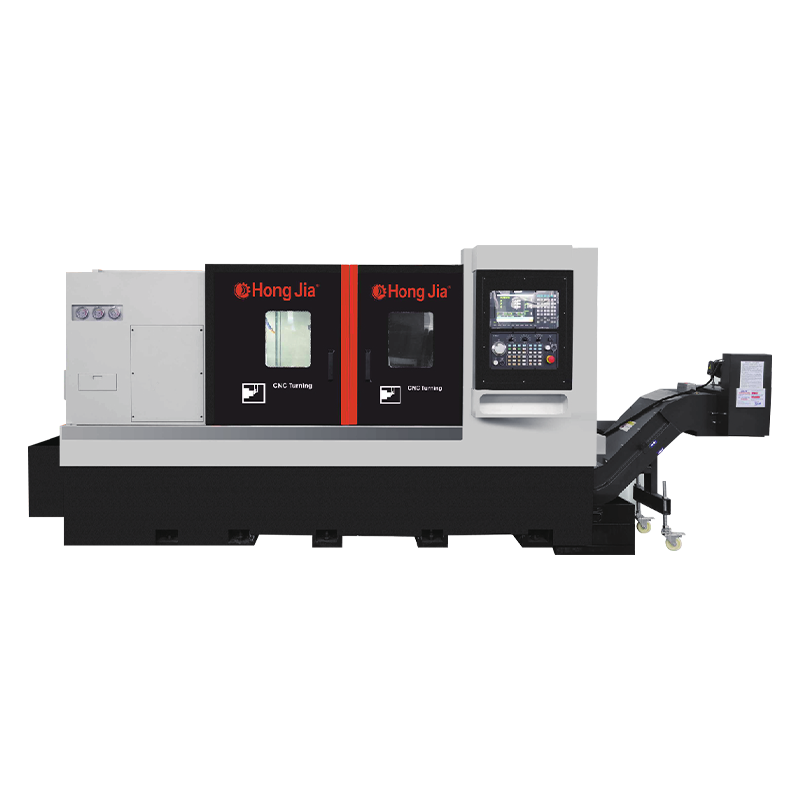

NC112 Drive Motor Horizontal Turning Center

Our drive motor horizontal turning center excels at traditional lathe processing, and also integrates drilling and boring functions, achieving multi-purpose use of one machine, greatly improving production efficiency and flexibility. The high-rigidity basic structure with reinforced design ensures the stability and durability of the machine tool in heavy-cutting operations. Even when processing large workpieces or performing high-intensity processing, it can maintain excellent processing quality and tool life.
The product adopts a pull-out coolant tank design, making cleaning and maintenance work easier and faster than ever before. This design reduces downtime, ensures the continued efficient operation of the equipment, and also provides employees with a safer and healthier working environment.

+ Contact Us
  • NC112 Drive Motor Horizontal Turning Center
  • NC112 Drive Motor Horizontal Turning Center

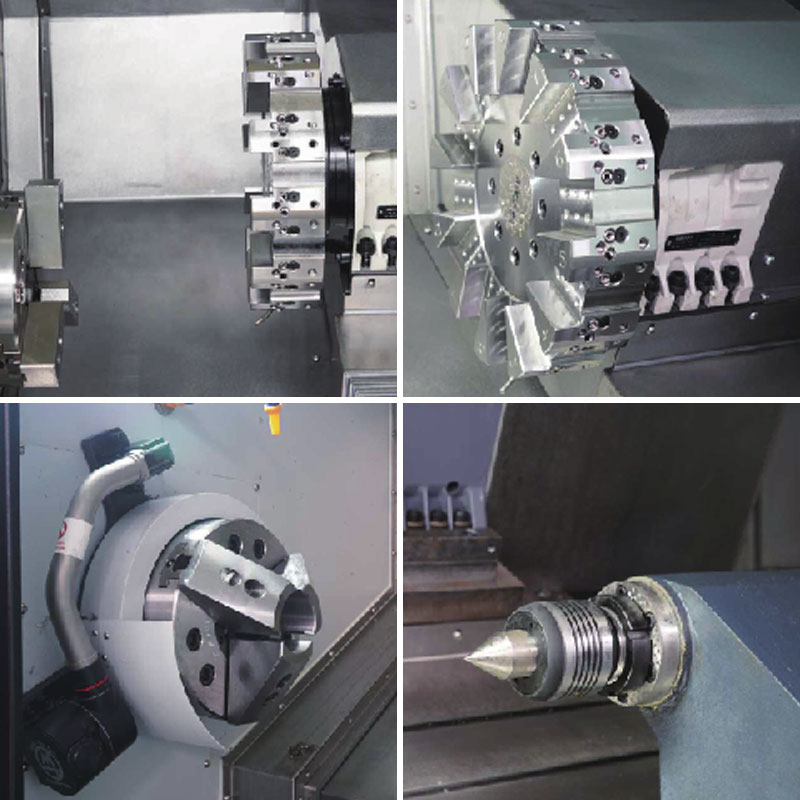

Production Information

Processing Capacity

1. Lathe, drilling, and boring can be carried out

2. High rigidity basic structure, to achieve heavy cutting

3. Excellent cutting ability and stable processing accuracy to achieve high production

4. The draw-out coolant tank is used for easy cleaning and cutting

5. Standard tank capacity: 125L

Machine tool basic configuration

1. New generation SYTEC/22TA

2. New generation drive motor

3. The new generation of high torque servo spindle motor is standard

4. Taiwan or Japan wire rail and screw

5. Separate water tank

6. Chip removal machine

7. Oil pressure three claws

8. Standard with built-in high-speed unit mechanical spindle

Technical Parameter

Item Unit NC-112
Max. Turning the diameter of the bed mm Φ750
Max .machining diameter mm Φ600
Max .working length mm 970
Max. Tie rod through hole diameter mm Φ91
Principal axis Spindle nose form A2-8/11
Spindle through hole diameter mm Φ102
Three-jaw chuck holding capability 12"
Pull rod action form Hydraulic pressure
Max .spindle speed r/min 2000min-1
Main motor power kW 15/18.5
Feed X-axis travel mm 350
Z-axis travel mm 1100
X/Z axis fast-moving speed m/min 25
Precision Positioning accuracy (X/Z) mm ±0.004
Repeated positioning accuracy (X/Z) mm ±0.002
Dota Tool number 12
Driving form Servo
Height of center mm 125
Tool change time (T-T) S 0.2
Boring tool holder specifications mm 50
Square tool holder specifications mm 25
Tailstock Taper of tailstock sleeve MT-5
Center sleeve diameter mm Φ80
Top sleeve maximum travel mm 100
Safety shield Completely closed
Numerical control system New Generation 22TA/FANUC Oi-TF
Machine weight Kg 5800
Overall dimensions of the machine (LxWxH) mm 3480×2200×1950
PREV: NC110D-Y High Production Horizontal Turning Center
NEXT: NC-112D Heavy Cutting Horizontal Turning Center

Recommended Products

Keep in Touch

+ SUBMIT
Ningbo Hongjia CNC Technology Co., Ltd.
Ningbo Hongjia CNC Technology Co., Ltd.
Ningbo Hongjia CNC Technology Co., Ltd. started in 2006 and was established in 2018. It is located in Qianwan New District, Ningbo City, Zhejiang Province, south wing of China Yangtze River Delta Economic Zone. It is an enterprise specializing in the research, development, production and sales of CNC metal cutting equipment. With strong technical strength and rich industry experience, Hongjia CNC is committed to providing customers with advanced CNC solutions to meet the needs of customers in different industries.
Plant And Equipment

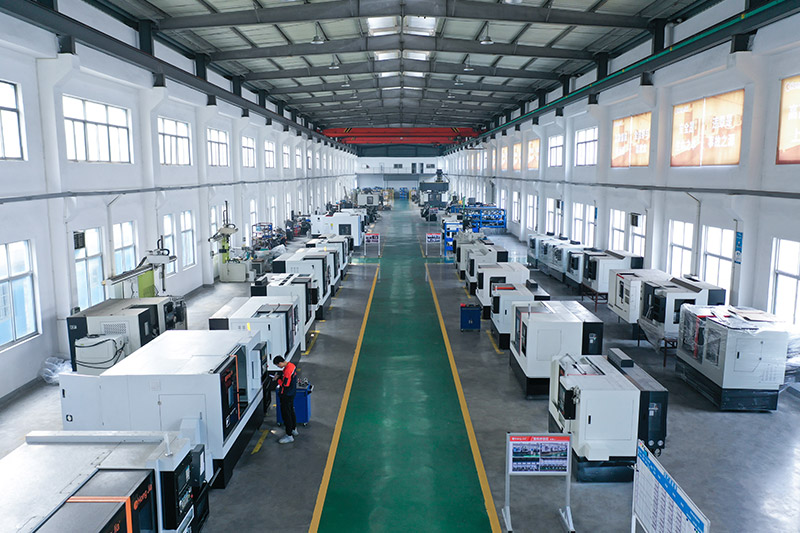

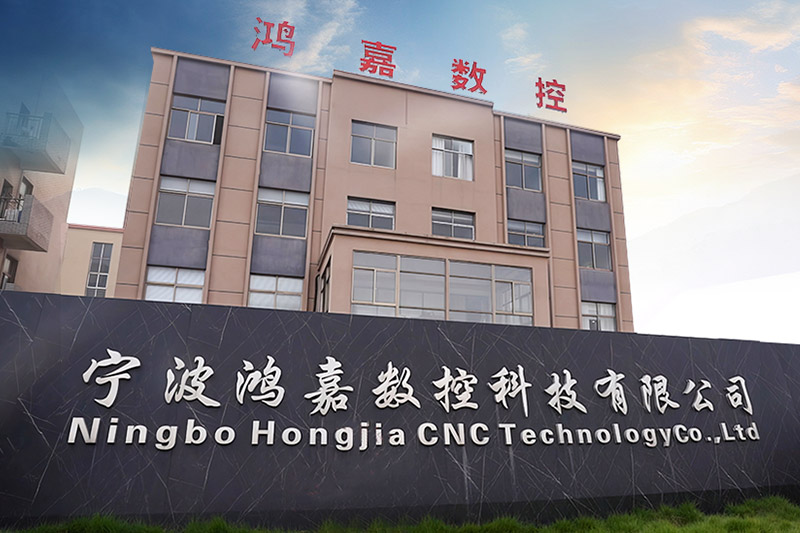

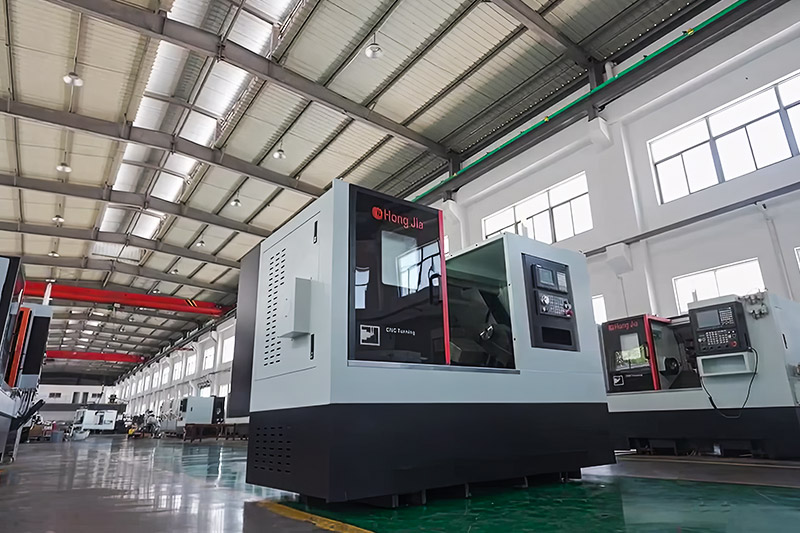

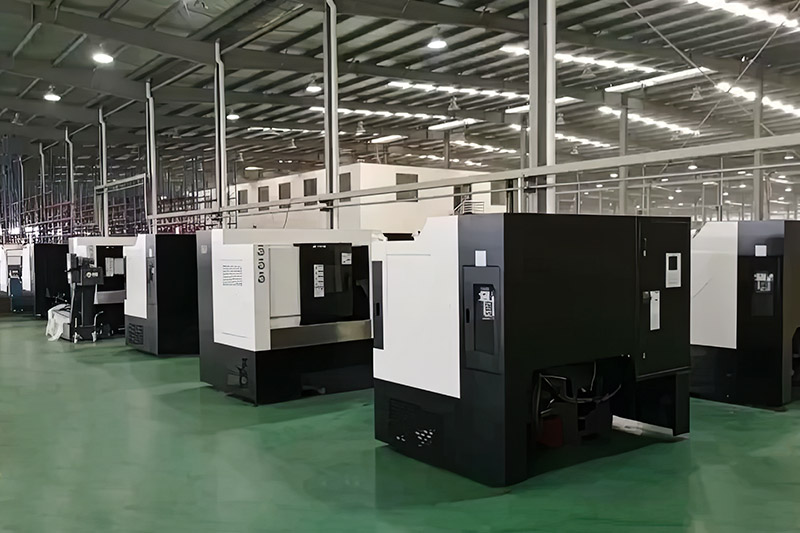

  • Factory appearance
  • Factory appearance

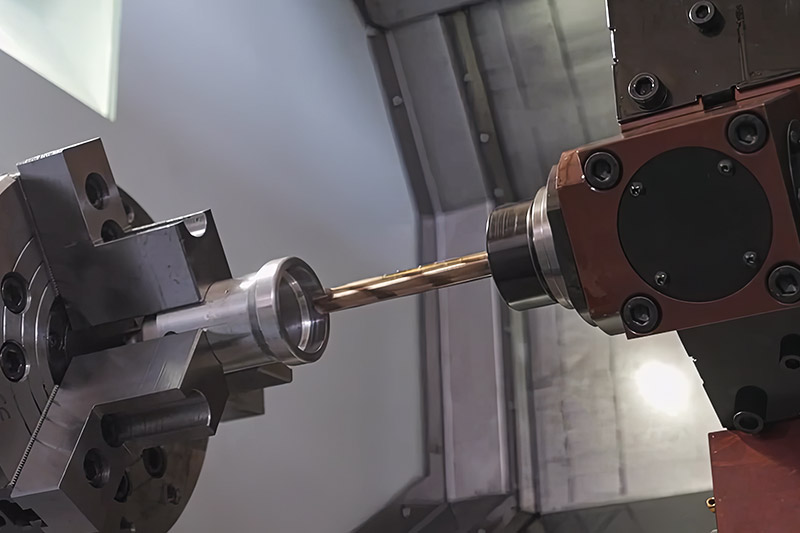

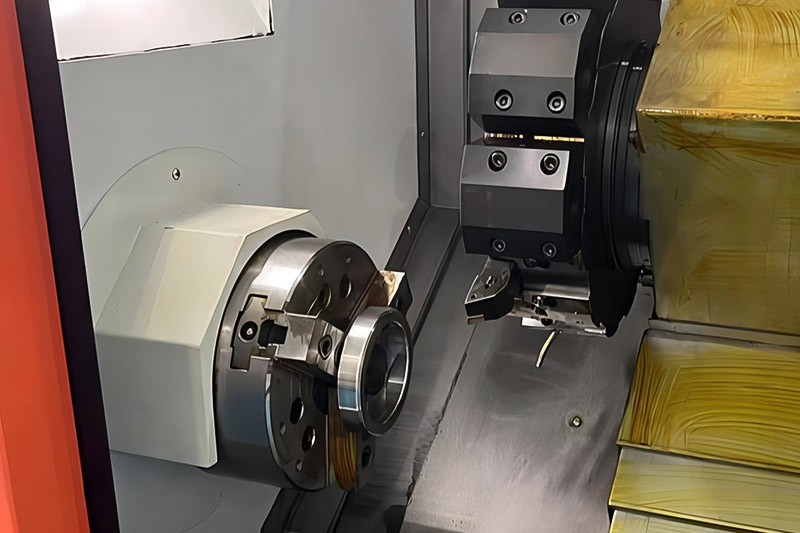

  • Equipment
