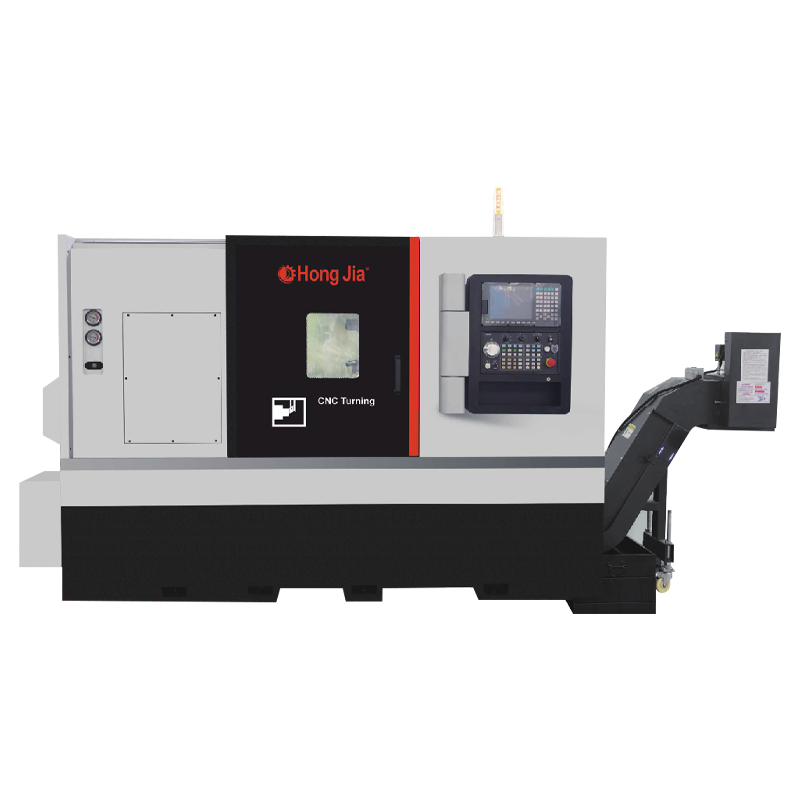

Home / Products / Horizontal CNC turning and milling series / NC110D-Y High Production Horizontal Turning Center NC110D-Y High Production Horizontal Turning Center
High-yield horizontal turning centers use high-performance spindles and cutting systems, which can easily cope with the processing of parts of various materials and shapes. Powerful cutting power and stable cutting speed ensure processing efficiency and processing quality. Optimized tool paths and cutting parameters reduce vibration and wear during cutting and extend tool life.
Precision guide rails and positioning systems ensure high precision and stability during processing. Advanced sensors and control systems monitor and adjust processing parameters in real time to ensure consistency in processing accuracy. Reliable clamping systems and fixtures ensure the stability and positioning accuracy of parts during processing.
High degree of automation, supports a variety of automated loading and unloading methods, reduces manual intervention, and improves production efficiency. Optimized machine tool structure and heat dissipation system ensure long-term stable operation, reduce downtime, and increase overall output.
Production Information
Processing Capacity
1. Lathe, drilling, and boring can be carried out
2. High rigidity basic structure, to achieve heavy cutting
3. Excellent cutting ability and stable processing accuracy to achieve high production
4. The draw-out coolant tank is used for easy cleaning and cutting
5. Standard tank capacity: 125L
Machine tool basic configuration
1. New generation SYTEC/22TB
2. New generation drive motor
3. The new generation of high torque servo spindle motor is standard
4. Taiwan or Japan wire rail and screw 5.Separate water tank
6. Chip removal machine
7. Oil pressure three claws
8. Standard with built-in high-speed unit precision mechanical spindle
Technical Parameter
| Item | Unit | NC-110D-Y | |
| Max. Turning the diameter of the bed | mm | Φ750 | |
| Max. machining diameter | mm | Φ600 | |
| Max .working length | mm | 700 | |
| Max. Tie rod through hole diameter | mm | Φ75 | |
| Principal axis | Spindle nose form | A2-8/11 | |
| Spindle through hole diameter | mm | Φ86 | |
| The taper of the spindle inner hole | MT-6 | ||
| Three-jaw chuck holding capability | 10” | ||
| Pull rod action form | Hydraulic pressure | ||
| Max. spindle speed | r/min | 2500min-1 | |
| Main motor power | kW | 15/18.5 | |
| Feed | X-axis travel | mm | 350 |
| Z-axis travel | mm | 750 | |
| X/Z axis fast-moving speed | m/min | 25 | |
| Precision | Positioning accuracy (X/Z) | mm | ±0.005 |
| Repeated positioning accuracy (X/Z) | mm | ±0.003 | |

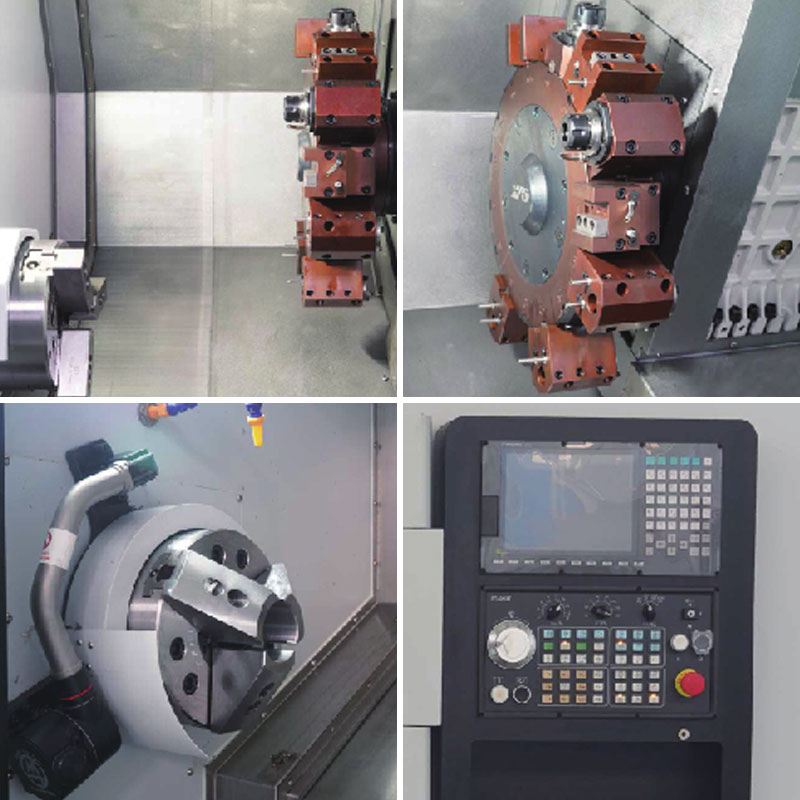

| Power tool tower | Tool number | 12 | |
| Driving form | Servo | ||
| Height of center | mm | 100 | |
| Toolchangetime(T-T) | S | 0.2 | |
| Boring tool holder specifications | mm | 50 | |
| Square tool holder specifications | mm | 25 | |
| Powerhead speed | r.p/min | 4000 | |
| Power head motor power | KW | 3.6 | |
| Powerhead torque | N.m | 15 | |
| Powerhead type | BMT | 55/65 | |
| Y-axis | Y-axis travel | mm | 150 |
| Y-axis motor torque | N.m | 8.4 | |
| Y-axis screw | balls | 3206 | |
| Y-axis guide form | Rectangular Hard Rails / Wire Rails | Rectangular hard rail | |
| Tailstock | Taper of tailstock sleeve | MT-5 | |
| Center sleeve diameter | mm | Φ80 | |
| Top sleeve maximum travel | mm | 100 | |
| Safety shield | Completely closed | ||
| Numerical control system | SYTEC 22TB/FAN UC Oi-TF | ||
| Machine weight | Kg | 5350 | |
| Overall dimensions of the machine (LxWxH) | mm | 2980×2200×1950 | |
